The RCS measuring system CoNRad is the smallest, lightest and most compact radar measuring system of its kind. Its outstanding technical features and its flexible use make it the make it the RCS measuring system with the best price-performance ratio.
CoNRad enables RCS measurements to perform hot-spot analysis to develop new countermeasures, reduce one's signature and thus improve the performance of one's own countermeasures.
It´s small size and light weight allow for very flexible and mobile use.
It enables
Measurements in two bands,
from 4 to 18 GHz and 30 to 40 GHz
Full polarimetric measurements for
More than 10 frequencies at the same time

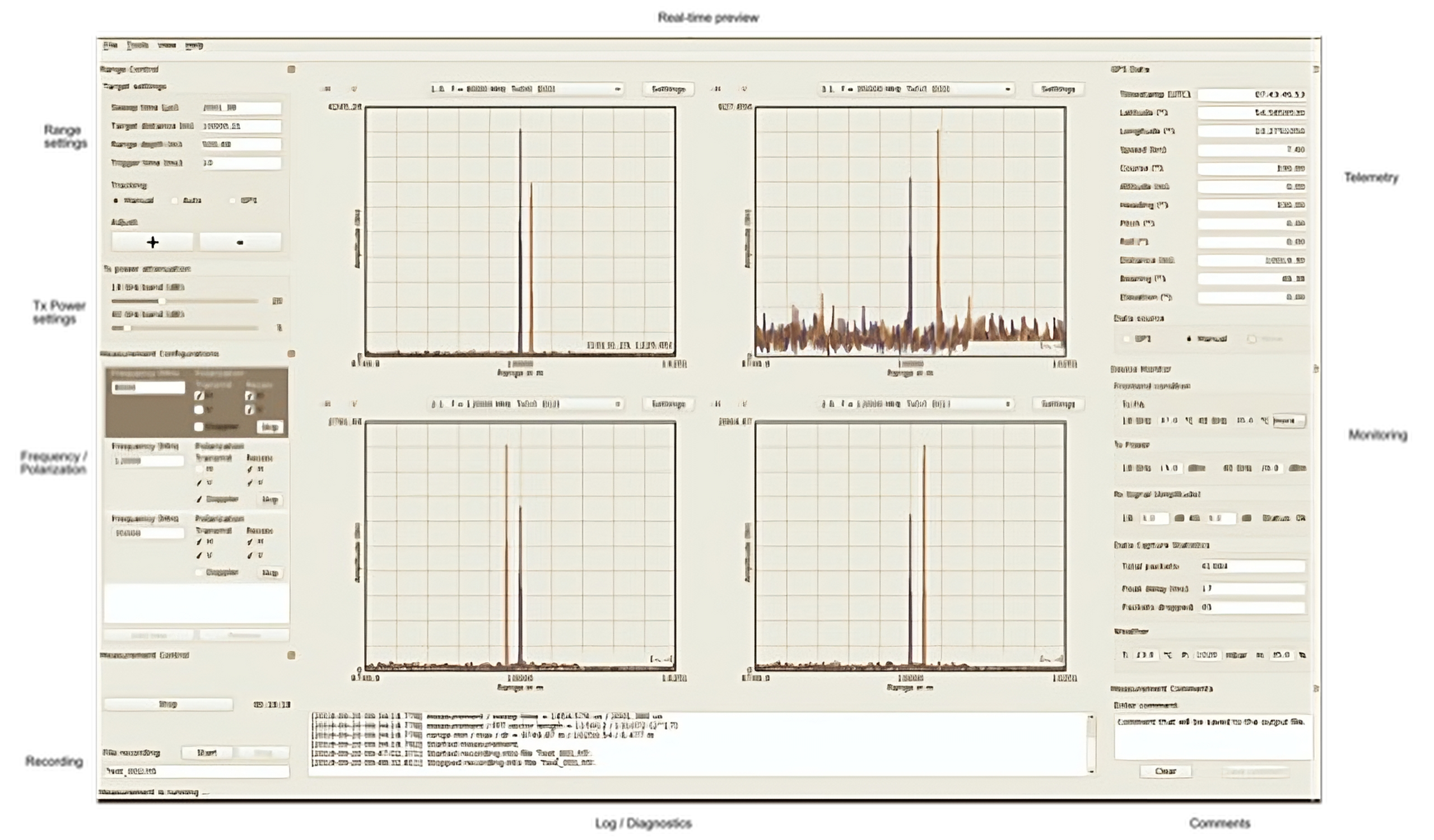

Realtime RCS monitoring
Extensive post-processing feature
sand report generation
4 – 18 and 30 – 40 GHz
Direct Digital Synthesis (DDS)
in 1 cycle (HH, HV, VV, VH)
300 MHz
0.5 Metre
< -110 dBm
up to 40 dBm
>60 dB
150 m ... 10 nm
>10
0 – 60 dB in 5 dB steps
All metadata in HDF5 file

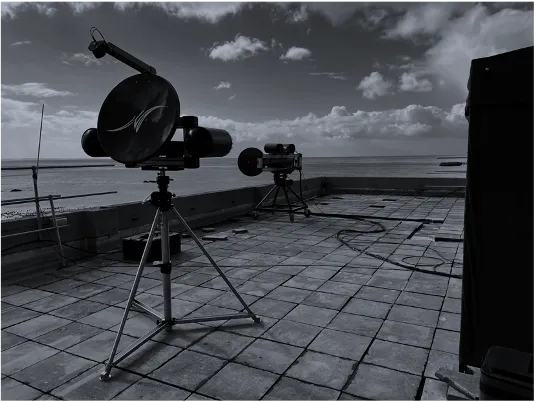

CoNRad during mobile measurement on the roof of an institute building. With the help of its pan tilt table, CoNRad can also measure from an elevated position.
Its benefits
Measuring RF-Signatures to enhance all kind of self-protection measures.
Significant reduction in turnaround times
due to parallel, fully polarimetric measurements in multiple frequencies.
High frequency coverage by using two independent bands – 4 to 18 GHz and 30 to 40 GHz.
High system availability due to solid state design and high integration level.
A
Radar Cross Section Measurement and
manufacturing of highly customized systems
B
Radar signature evaluation and Hot Spot analysis
C
Design of Countermeasures/Decoys for self-protection of ships and airborne platforms
